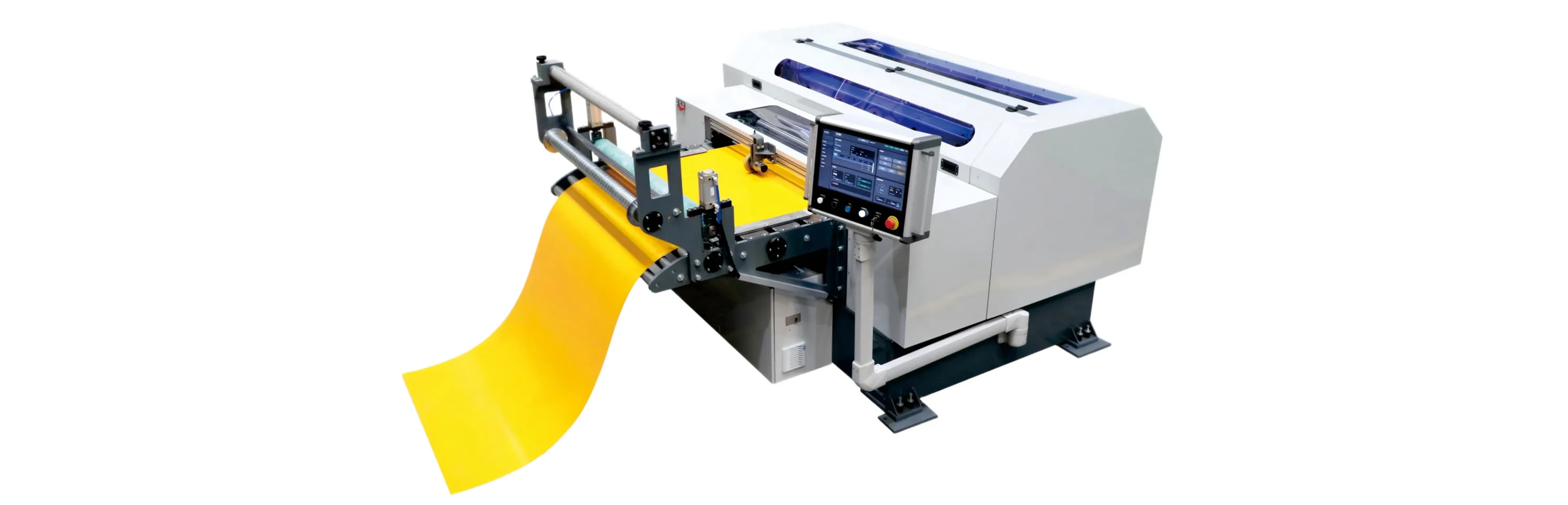

JFQ125 Automatic Steel Plate Slitting Machine

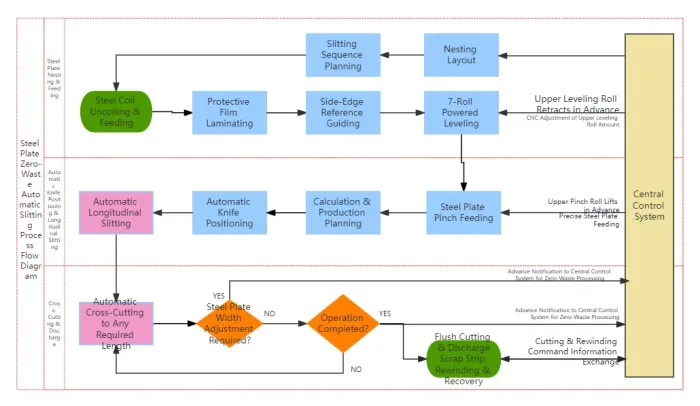

Production Process Flow

Main Functions and Key Technologies

• The standard configuration includes 5 sets of longitudinal slitting knife assemblies, with the option to upgrade to 8 sets.

• The overlap and clearance between the upper and lower slitting knives of all longitudinal slitting knife assemblies can be synchronously and automatically adjusted through the servo system, enabling quick and precise setup.

• The longitudinal slitting knives can be preset to the required dimensions through the touch screen. The automatic knife positioning system enables fast automatic adjustment, making the equipment particularly suitable for batch production with multiple plate-width specifications.

• The cross-cutting system adopts a single cutting knife assembly combined with a long cutting knife. Driven by the servo system, it can independently cut individual steel strips on the left, middle, right, or other designated positions.

• The equipment supports a zero-waste production mode. When processing the final sheet of a slitting sequence, the longitudinal slitting knives are disengaged from the cutting position in advance. After the sheet is cross-cut flush, the material is automatically retracted. Once the knife configuration has been adjusted, the equipment resumes sheet feeding and starts slitting the next specified sheet size.

• A fully automatic safety protection system is provided. The output torque of each servo motor is monitored in real time. In the event of an abnormal or sudden change in torque, the equipment will automatically issue an alarm and stop for protection. Operation can resume after manual inspection, troubleshooting, and confirmation.

• The equipment adopts a 7-roll leveling system. The three upper leveling rolls can each be independently and rapidly adjusted through the servo system to adapt to steel plates with different levels of flatness.

• The equipment is standard-equipped with a protective film laminating unit, enabling automatic film application to the steel plate. The output tension of the laminating roll is adjustable.

• A precision guiding and centering system is provided and driven by a servo system. One side of the sheet is used as the reference edge, while the motor-driven servo mechanism applies pressure to the opposite edge, ensuring that the sheet travels through the machine parallel and stably, preventing material deviation.

Other Notes

1．The equipment color may be specified by the Purchaser when signing the contract. Unless otherwise specified, the equipment will be manufactured using the standard Jinggong color scheme.

Note: The equipment color may be specified by the Purchaser at the time of contract signing. The standard Jinggong color scheme will be adopted if no special requirements are specified.

2．During equipment delivery and installation, the Purchaser's workshop shall be equipped with one 10-ton overhead crane or mobile crane.

3．Before the equipment arrives on site, the Purchaser shall arrange the following near the equipment:

• One power distribution cabinet, equipped with one 63 A circuit breaker.

• One compressed-air supply point, with a pressure of ≥0.6 MPa.

4．The main incoming power cable (YCW 3×6 + 1×4 mm²) shall be provided by the Purchaser. The required cable length shall be determined according to the actual site conditions.
